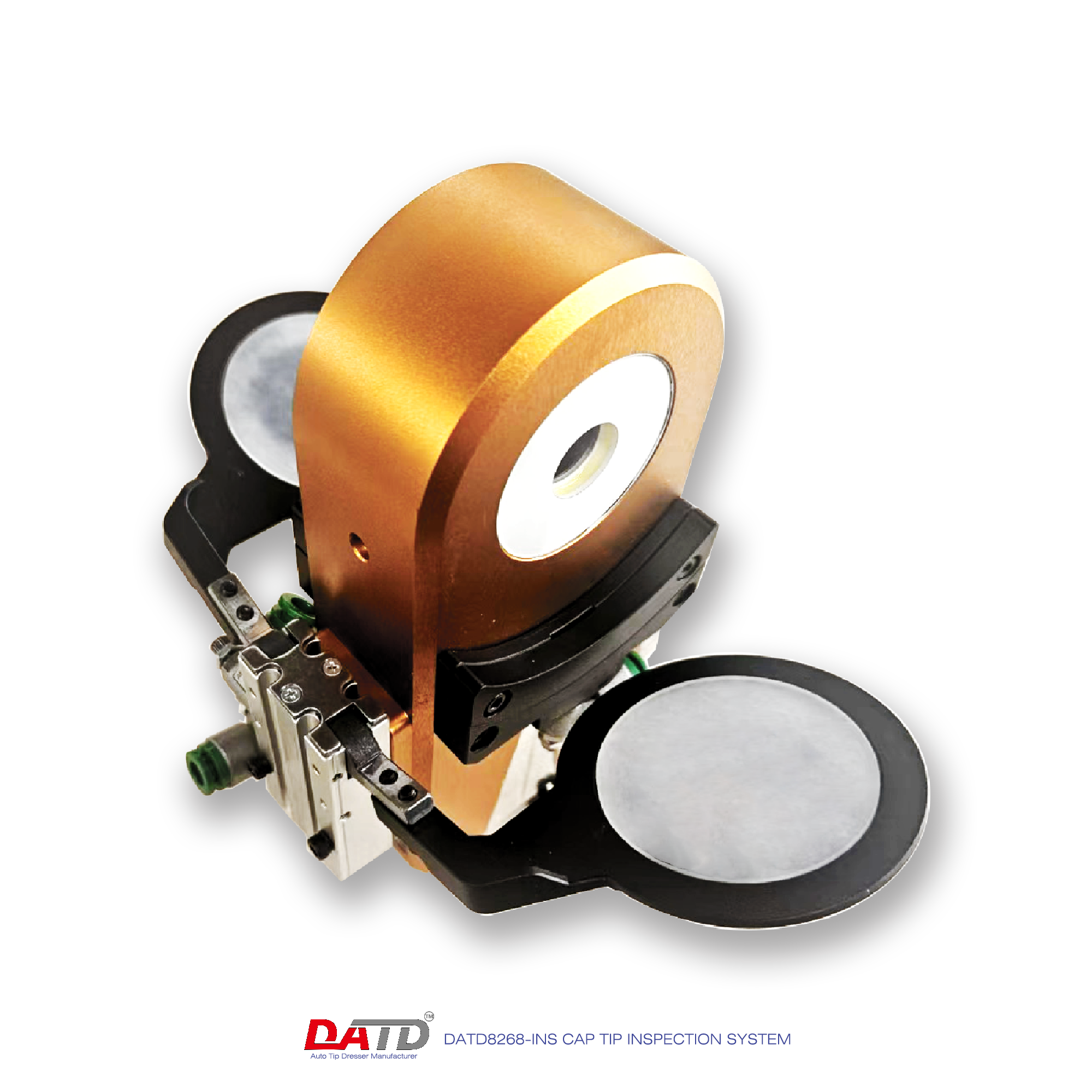

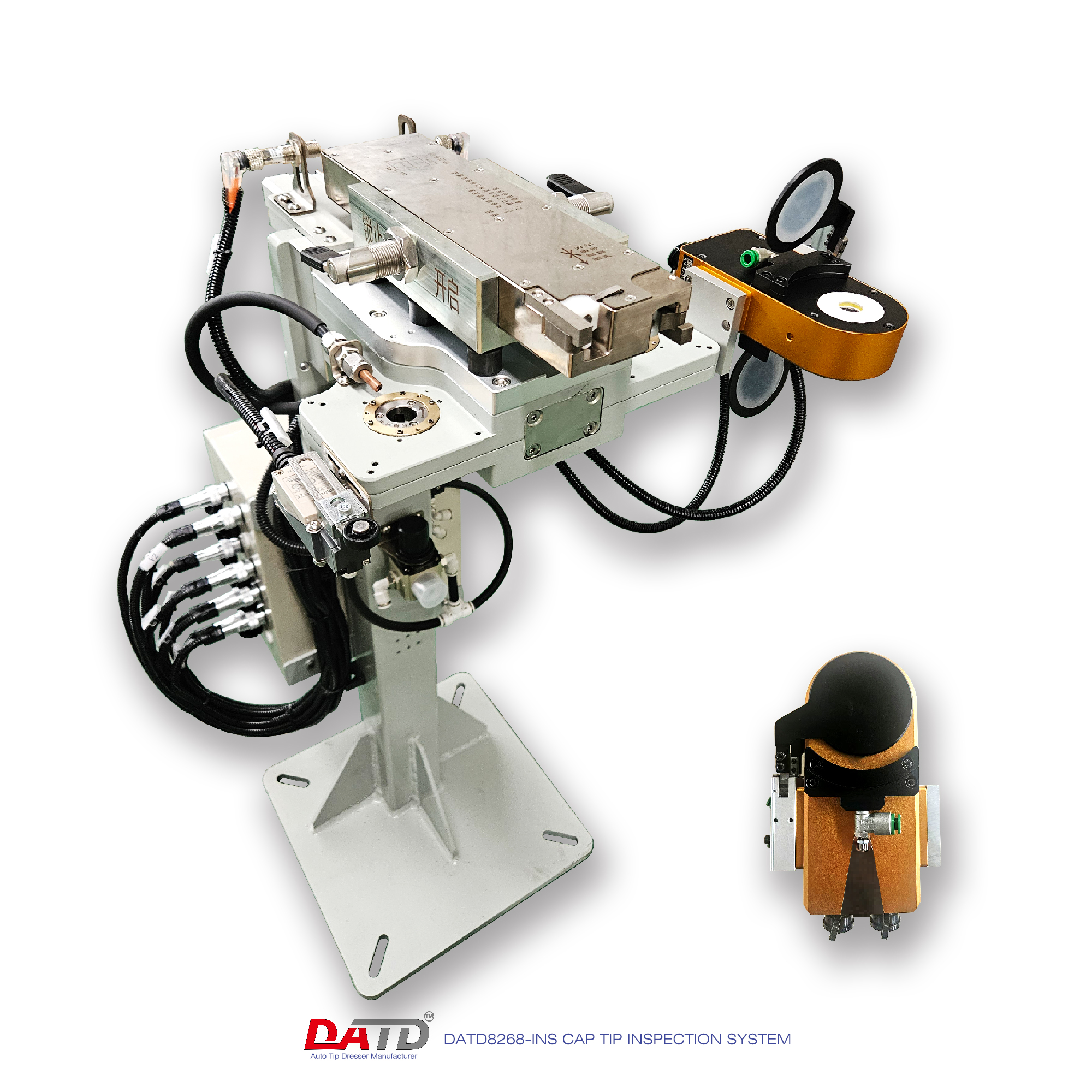

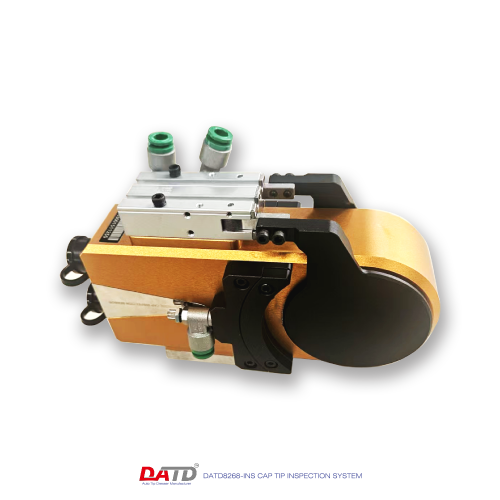

DATD8268-INS
■Spot welding electrode cap quality control after dressing,measurement of electrode cap end face dimensions and position, inspection of defects on the end face of the electrode cap
■Dust and dirt resistant design with its own airblades and covers, Non-contact Al optical inspection design Al model training software for continuous optimization of accuracy.
■Inspecting including:Black marks, bumps, sticky copper chips, pits, radiallines, end face too big, end face too small, end faceout of round, end face eccentricity, plum blossom pattern, incomplete dressing, uneven dressing
■Waterproof designed,perfectly running in harsh working conditions.
Technical parameters of DATD8268-INS
|
Model
|
DATD8268-INS
|
|
Inspecting Speed
|
<1s
|
|
Inspecting Accuracy
|
0.01mm
|
|
Range of Inspecting Diameter
|
12-20mm
|
|
Protection Class
|
IP67
|
|
|
|
|
